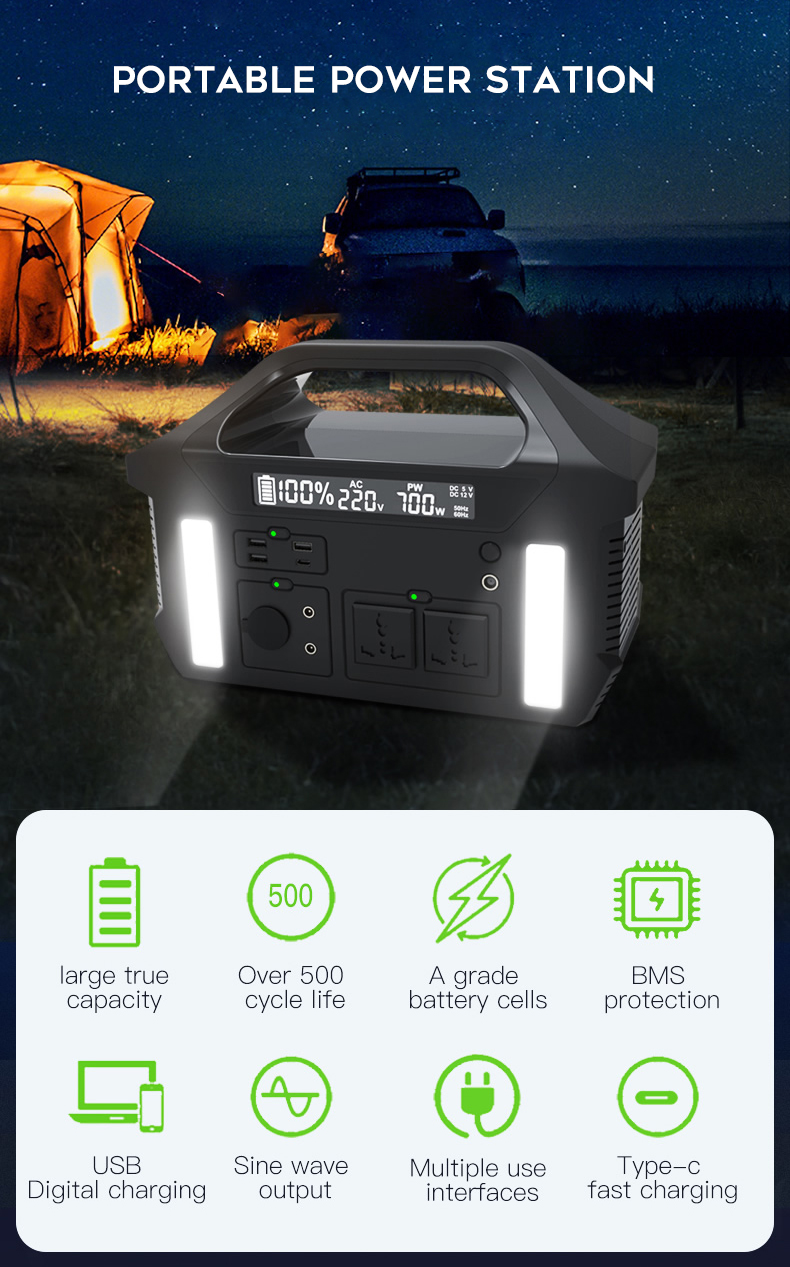

• Double protections on both BMS and charger; • Pure Sine Wave inverter, more friendly for electric applicances; • Built in MPPT solar controller, high efficiency; • Intelligent temperature cooling fan, working sliently; • Led Lighting and SOS Functions; • PD3.0 60W super Rapid charging; • Three charging method, charge anywhere.
Send Inquiry service@iacetop.com* UPGRADED LITHIUM ION BATTERY POWER SUPPLY:

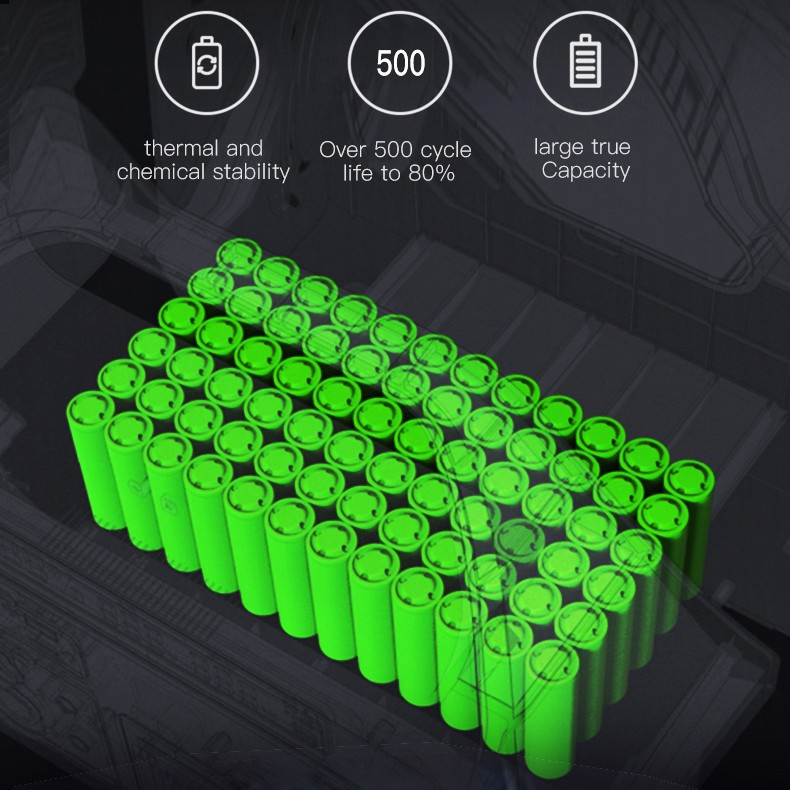

Building 692.2Wh battery is thermal and chemical stability, which improves battery safety. Offer portable power station more powerful for long time working.
* QUICK CHARGE & VERSATILE OUTPUTS:
This power station features 1* AC outlet (220V 700W ), USB2.0 , QC3.0 , DC, car interface. With a 692.2Wh capacity, meet the different equipment needs: mini fridge, cooling fan, air pump, RV lightings, laptops and TV.
Provide a strong power supply for your family under special circumstances such as outdoors, camping, RV, home emergency backup etc.

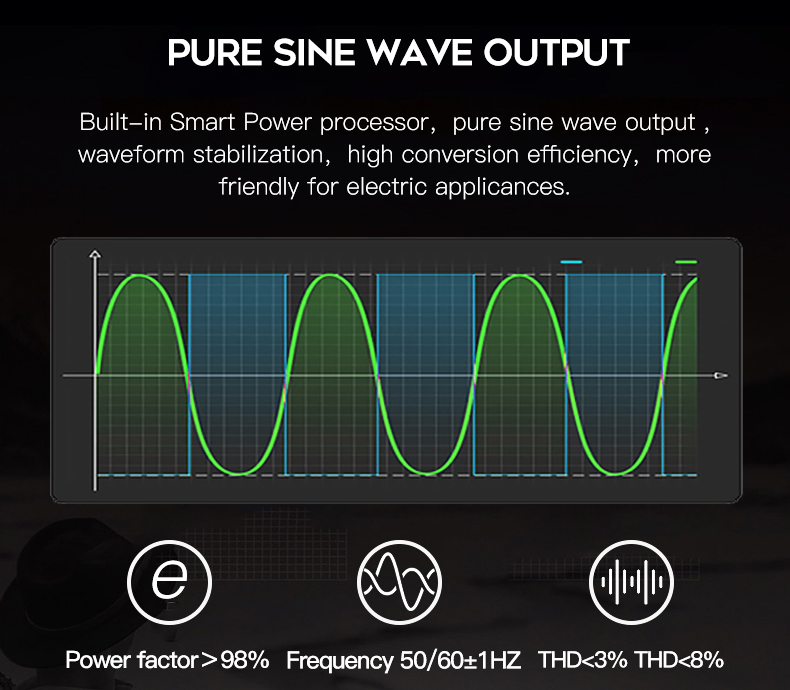

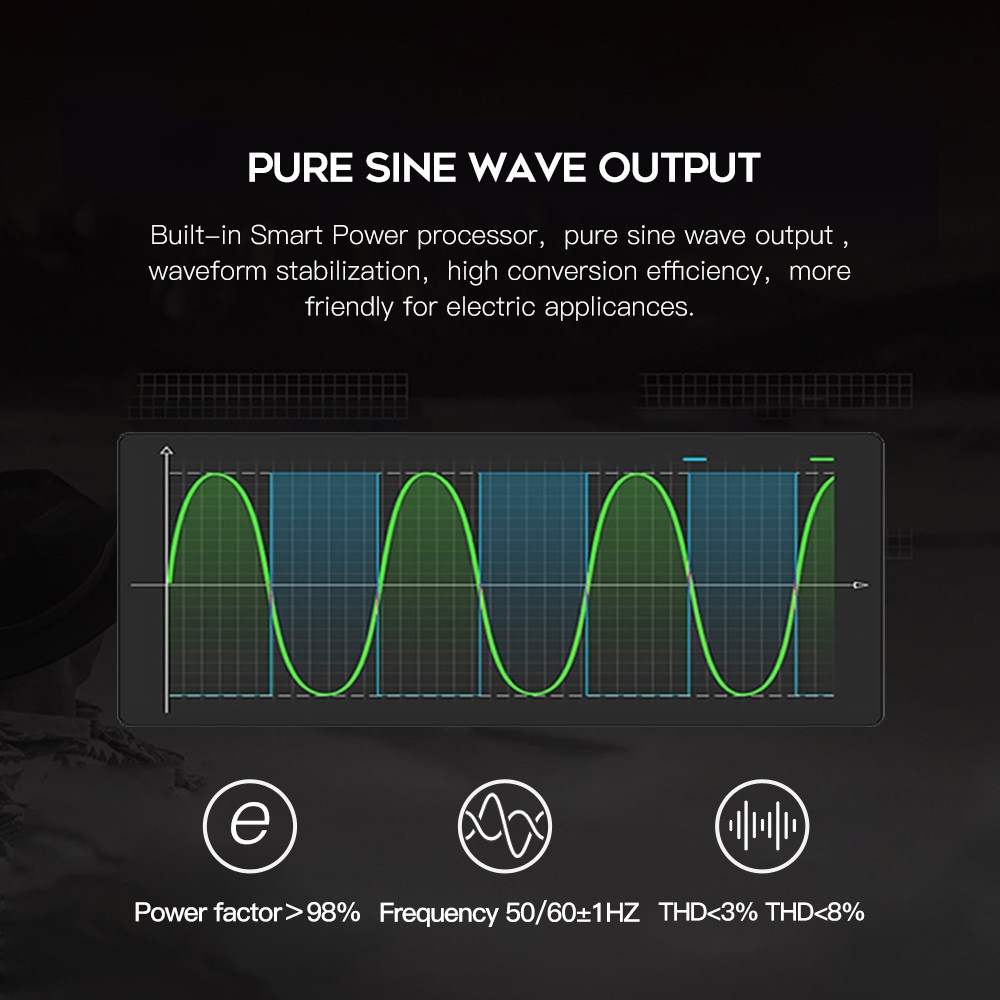

* PURE SINE WAVE AC OUTLET:
All in one power solar generator protect charging devices by producing clean and stable electricity with the pure sine wave. Continuous 700W AC outlet and it can reach 850W peak power to start more electrical devices.
* ECO-FRIENDLY CLEAN OUTDOOR POWER:
Solar power generator works without bothering noise, no fuel or gasoline, it can safeguard you and your devices by over-voltage protection, over-current and over-temperature protection.
* One year warranty:
About power station ,Any questions, please feel free to contact us.
Cell Type | NCM CELL , A grade lithium-ion battery cell |
Battery Pack Capacity | 47Ah (14.8V) |
Battery Pack Energy | 692.2Wh |
Rating Output Power | 700W |
Output Interface | USB2.0 ; QC3.0 ; AC ; DC ; car interface |

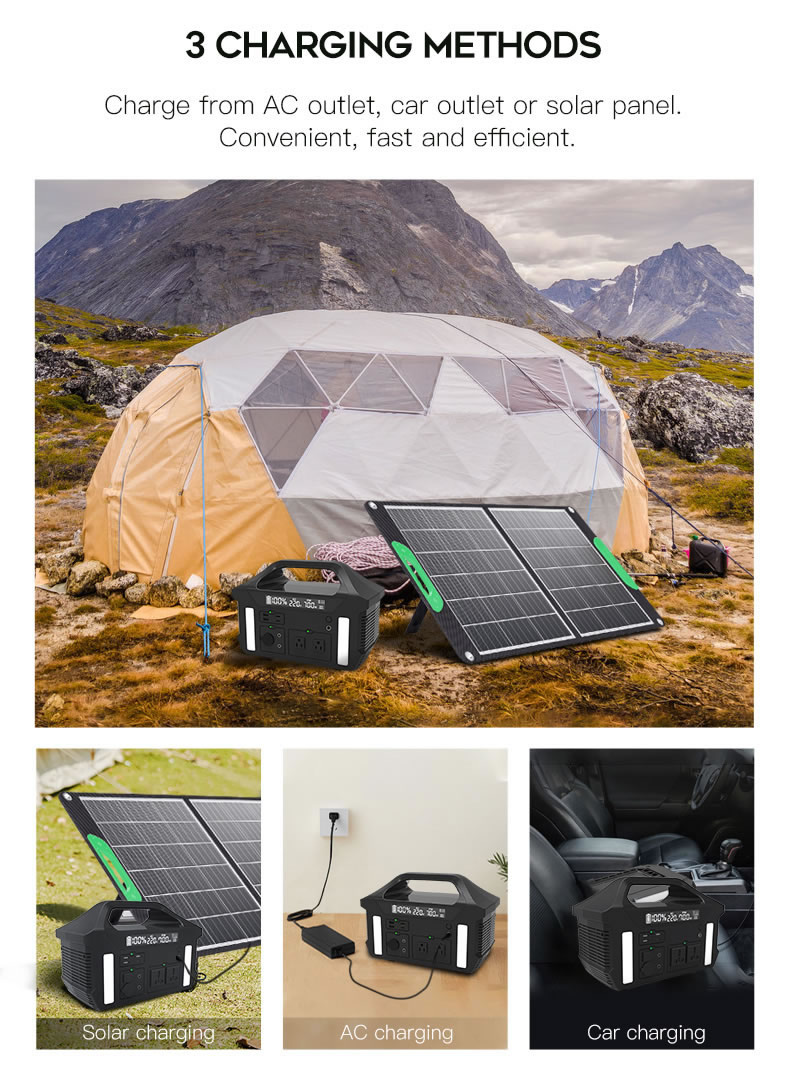

Power Source | AC Adaptor, Car, Solar Panel |
Protection system |
Intelligent

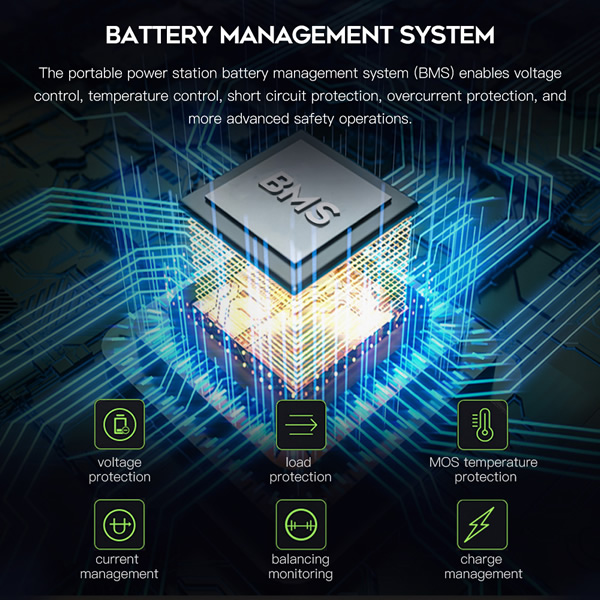

battery management system MOS Protection Double protections on both BMS and hardware over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection. |
Full Load Output Power Factor | >0.98 |
Output Voltage Distortion Waveform (THD) | Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load) |
AC output | 220V/240V 50±1Hz , 110V/120V 60±1Hz |
Life Cycle | 2000 cycles to 80% capacity |
Solar charging port | Support any solar input from 12-24V 4A max (up to 80W) |
Socket Standard | For USA/Canada, For E.U., For UK, For Australia/New Zealand, For Italy, For Brazil, For Japan, Universal, Others. |
Operating temperature |
Charge
Temperature 0~40℃ Discharge Temperature -10~40℃ Storage Temperature -10~40℃ |
Package detail |
Product
weight:13.5Kg Product Size: 350*175*245mm Package dimensions:450*260*300MM |
OEM service | Appearance, size, style, performance, packaging, can be customized |
Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.
Parameters,appearance, performance, power,battery capacity,voltage , PCB,software ,Color, size, APP, logo, packaging, can be customized.
※What make our product difference from other factory?
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.
2. We have a highly experienced and efficient R&D, Design, Sales and Management team with top educational background. We provide full after sales and technical support. With our passionate and professional support team, ACETOP looks forward to being your supplier.
You can be assured your products receive priority treatment. We strive to have our customers regard us as strategic manufacturing partners, an integral part of their operations. Our headquarter center are located in Shanghai, China. Contact us at once to make us your long term partner!
3.We have a complete process chain in the industry, so we can provide you with better customized services.
4.Normally MOQ 500pcs, but we also accept small sample order for quality clients.
※How do we ensure our quality ?
1. In the field , well-known brands are our cooperative customers. We have provided them with oem services for 10 years. With their help, we have continuously optimized our quality control system.
2. We are confident to provide customers with top quality products as we have solid flow of Production Material Control (PMC),In-Process Quality Control (IPQC), Finished Product Quality Control (QC) and Delivery Quality Assurance (QA). To provide you with an extra level of protection, we check our items piece by piece prior to shipment.
3. Our products have passed ISO 9001,CE,ROSH, CCC and other certification .
